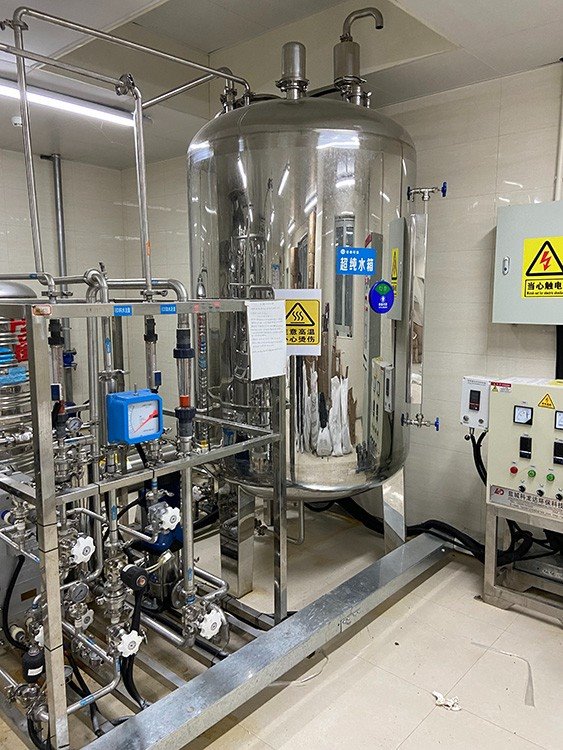

The Ultra Purified Water System for Photovoltaic is specially designed to meet the stringent water quality requirements of the photovoltaic (PV) manufacturing industry. Photovoltaic production processes, such as wafer cleaning, solar cell fabrication, and module assembly, require ultrapure water (UPW) to ensure high-quality, efficient, and reliable solar panels. This advanced purification system utilizes a combination of Reverse Osmosis (RO) and Electrodeionization (EDI) technologies to produce water with resistivity greater than 18.2 MΩ·cm, which is essential for eliminating contaminants that could impact solar panel performance and longevity.

Key Features

High-Purity Water Production:

The system produces ultrapure water with resistivity levels >18.2 MΩ·cm, which meets the exacting standards required in photovoltaic manufacturing processes such as cleaning silicon wafers, rinsing photovoltaic cells, and fabricating high-efficiency solar panels.

Two-Stage Purification Process:

Reverse Osmosis (RO): The first stage of purification involves RO membranes, which remove up to 99% of dissolved salts, organics, and particulates, ensuring a significant reduction in Total Dissolved Solids (TDS).

Electrodeionization (EDI): The second stage employs EDI technology to further deionize the water. EDI uses ion-exchange resins and an electric field to remove any remaining ions, ensuring the production of high-purity water without the need for chemicals.

Chemical-Free Regeneration:

EDI Technology regenerates ion-exchange resins using electricity, eliminating the need for chemical regeneration. This makes the system eco-friendly, reducing both chemical waste and operational costs associated with handling and disposal of chemicals.

Final Polishing Filters:

The system may include polishing filters to ensure the final water output is free from any remaining contaminants such as microorganisms, organic compounds, and fine particulates that could affect the cleaning and manufacturing processes in PV production.

Continuous Water Quality Monitoring:

The system is equipped with real-time monitoring for critical water quality parameters such as resistivity, Total Organic Carbon (TOC), silica, and particulate levels. Automated sensors ensure that the water consistently meets the purity standards required for the PV manufacturing process.

Applications in Photovoltaic Manufacturing

1. Wafer Cleaning:

Ultrapure water is essential for cleaning silicon wafers, which are the foundational material in solar cells. The water must be free of contaminants that could interfere with the production of high-efficiency photovoltaic cells.

2. Solar Cell Fabrication:

During the fabrication of solar cells, ultrapure water is used to rinse cells and remove any chemicals or particulate matter that could degrade their performance.

3. Module Assembly:

Water is used in the assembly process of solar panels to ensure that modules are clean and free from any contamination, which could affect their long-term performance and durability.

4. Chemical Rinsing:

After certain chemical treatments (e.g., etching or doping), ultrapure water is used to rinse and neutralize surfaces, ensuring no harmful residues remain on the final products.

Advantages of Ultra Purified Water System for Photovoltaic

High-Quality Water for High-Performance Panels:

The ultrapure water produced by this system ensures that each step of the photovoltaic production process is free from contaminants, which is critical to producing high-efficiency, durable solar panels.

Reduced Risk of Contamination:

The system effectively removes particulates, organics, and microorganisms, all of which can interfere with the photovoltaic production process, reducing the risk of defects in solar cells and panels.

Environmentally Friendly:

The chemical-free regeneration in the EDI process ensures that the system is environmentally responsible, reducing the need for harmful chemicals and minimizing wastewater generation.

Low Operating Costs:

The elimination of chemical use in the EDI stage, combined with low maintenance and high-efficiency filtration, leads to lower operational costs compared to traditional water purification systems that rely on chemical treatments.

Scalability and Customization:

The system is scalable to meet the varying water demands of different-sized photovoltaic manufacturing plants, from small-scale production to large-scale facilities. It can be customized to suit specific production needs.

Specifications

Resistivity	>18.2 MΩ·cm
TDS (Total Dissolved Solids)	<10-20 ppm
Silica	<0.05 ppm (to prevent scaling and contamination in the PV manufacturing process)
TOC (Total Organic Carbon)	<10 ppb
Particulate Matter	<1 ppb
Flow Rate	Customizable based on production needs (typically from 5 m³/hr to 100 m³/hr)

This Ultra Purified Water System for Photovoltaic Manufacturing is an essential solution for ensuring the highest quality water in solar panel production, helping manufacturers achieve high-performance photovoltaic cells while adhering to environmental and cost-efficiency goals. Whether used for wafer cleaning, cell fabrication, or module assembly, this system provides reliable, ultrapure water to support the sustainable growth of the solar energy industry.
