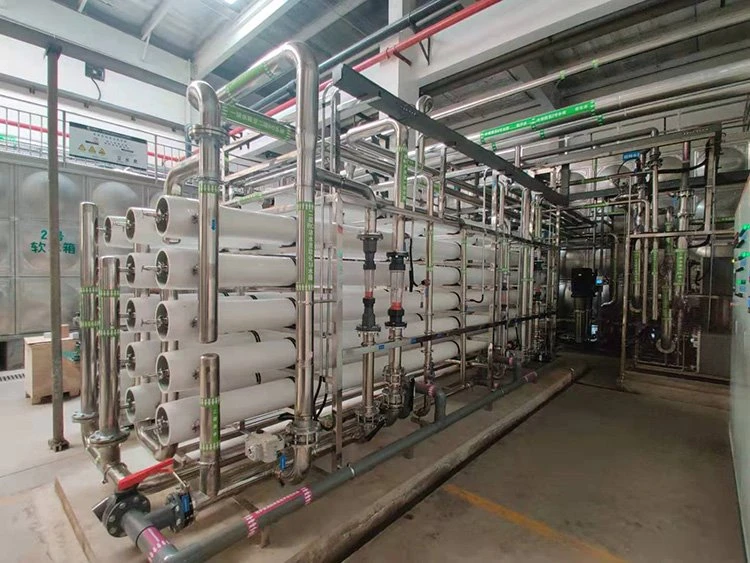

Ultra Pure Reverse Osmosis System for Power Battery

The Ultrapure Reverse Osmosis System for Power Battery is designed to provide high-purity water essential for the production and assembly of power batteries. In the manufacturing of lithium-ion batteries, supercapacitors, and other energy storage devices, ultrapure water is critical to ensure the quality of electrodes, avoid contamination, and prevent issues such as corrosion or reduced battery efficiency. This system combines Reverse Osmosis (RO) technology with polishing filters to ensure water purity levels that meet the stringent requirements of the battery manufacturing process.

• Prevents contamination in electrodes, separators, and electrolyte solutions.
• Ensures stable electrochemical reactions, which are critical for battery efficiency and longevity.
• Prevents scaling and fouling, which can degrade performance and increase maintenance costs.
• Improves battery performance by reducing internal resistance and increasing longevity.
• Ensures consistency in manufacturing processes for high-quality, reliable batteries.
• Supports the production of high-quality electrolytes, which are essential for battery chemistry.
• Eliminates microbial contamination that could interfere with production and battery performance.

High-Purity Water Production:

The system produces ultrapure water (UPW) with resistivity levels greater than 18.2 MΩ·cm, making it suitable for the sensitive processes involved in power battery manufacturing. The water produced is free from dissolved solids, organic contaminants, and microbial pollutants that could impact the performance and longevity of the batteries.

Two-Stage Purification Process:

Reverse Osmosis (RO): The first stage uses RO membranes to remove up to 99% of dissolved salts, minerals, and organic contaminants. The RO system significantly reduces the Total Dissolved Solids (TDS) and provides water that is pre-treated for further purification.

Polishing Stage: After the RO stage, the system employs a polishing filter (such as a mixed-bed ion-exchange resin) to further deionize the water. This ensures that the final output meets the high standards required for battery manufacturing, free from any remaining ions or impurities.

Chemical-Free Regeneration:

The RO system produces ultrapure water without the need for chemical regeneration processes, reducing both operational costs and the environmental impact associated with chemical waste disposal.

Pre-Treatment and Antiscalant Injection:

Sediment filters and activated carbon filters are used to remove large particles, chlorine, and organic compounds before the water enters the RO system.

In areas with high TDS, an antiscalant may be injected to prevent scaling on the RO membranes, ensuring system longevity and maintaining high water recovery rates.

Real-Time Water Quality Monitoring:

The system is equipped with sensors to monitor resistivity, TDS, Total Organic Carbon (TOC), and silica levels, ensuring that the ultrapure water consistently meets the required purity standards for battery production.

1. Electrode Cleaning and Preparation:

Ultrapure water is used to clean and rinse electrodes, conductors, and other components in lithium-ion batteries, ensuring that no contaminants remain that could affect the efficiency and lifespan of the final product.

2. Battery Cell Assembly:

In the assembly of battery cells, ultrapure water is used to rinse and clean battery components like separators, current collectors, and electrodes, ensuring that no residual impurities affect the chemical reactions in the cell.

3. Electrolyte Preparation:

Ultrapure water is used to prepare the electrolyte solution for power batteries, where even trace impurities can compromise battery performance, leading to lower capacity or shortened cycle life.

4. Battery Testing and Rinsing:

After the final assembly of the batteries, ultrapure water is used for the final rinsing and cleaning steps to remove any residual chemicals, ensuring a clean and safe battery that meets performance standards.

Ensures High-Quality Battery Production:

The ultrapure water ensures that critical components of the battery are free from contaminants that could negatively affect performance, efficiency, and lifespan.

Cost-Effective and Eco-Friendly:

The chemical-free regeneration and efficient water recovery features of the RO system reduce both operating costs and environmental impact, making it an eco-friendly solution for battery manufacturers.

Improved Battery Performance:

By eliminating contaminants and organic impurities, the ultrapure water used in power battery manufacturing helps ensure optimal battery performance, improving cycle life, energy storage, and overall reliability.

Consistent Water Quality:

Continuous real-time monitoring of water quality parameters ensures that ultrapure water consistently meets the required standards for manufacturing lithium-ion batteries and other power storage devices.

Low Maintenance:

The system requires minimal maintenance due to its automated operation and chemical-free regeneration, leading to reduced downtime and increased production efficiency.

The Ultrapure Reverse Osmosis System for Power Battery Manufacturing is an essential tool for ensuring the highest water quality in the production of lithium-ion batteries, supercapacitors, and other energy storage systems. By providing consistently ultrapure water for cleaning, rinsing, and electrolyte preparation, this system helps ensure that power batteries are free from contaminants that could compromise their performance, efficiency, and lifespan. Additionally, the eco-friendly, cost-effective design of the system makes it an ideal solution for battery manufacturers focused on sustainability and high performance.

a.We provide full technical support and after equipment installation.
b.We help to train operator of the system. And detailed operating manual is provided.
c.7*24 hours phone assistance on technical support.
d.We provide consumable and spare parts in the long-term for cost price.

a.All systems delivered to customers are carefully examined and pipe tested.
b.All systems enjoy 12 MONTHS warranty ever since B/L date.
